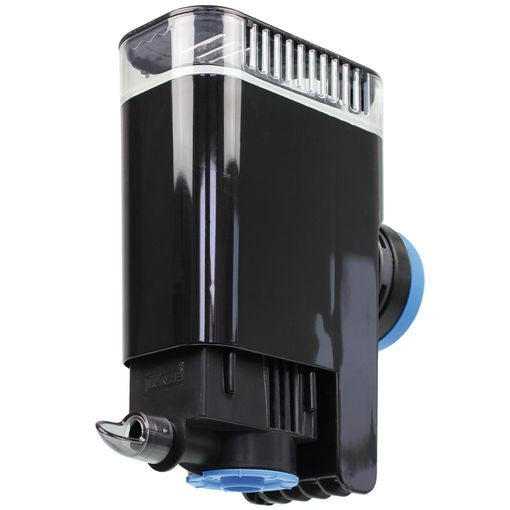

Tunze Comline Nanofilter 3161

Tunze Comline Nanofilter 3161

The Comline® Filter 3161 is a very compact and quiet internal filter which offers the Comline® design with two chambers, a surface suction device and floor-level suction for Nano fresh water and marine aquariums from 30 liters (7 USgal.) to 100 liters (26 USgal.). It is also a single-purpose surface filter, especially for the surface film removal in large aquariums up to 1,000 liters (264 USgal.). In such aquariums which are often not equipped with a drain, the Comline® Filter 3161 is able to ensure the highly efficient surface cleaning with only a small footprint. It contains an adjustable Comline® energy-saving pump 900, which can be adjusted to a low power output for small aquariums, and an increased power output for large aquariums. A Silence Magnet Holder for a glass thickness of up to 10 mm (3/8 in.) is integrated into the support of the Comline® Filter 3161, the filter is spaced from the glass with silicone buffers and doesn‘t emit any vibrations to the aquarium. The glass thickness can be expanded up to 15 mm (2/3“) for larger aquariums (accessory).

The pre-chamber of the filter which handles approx. 15% of the total water throughput has enough space for a nano heater or organic material in Nano aquariums, but also for pH or temperature probes in larger aquariums. The main chamber is designed to be used with filter wool or any type of filter media, contains a filter sponge and is easily removable.
The Comline® Filter 3161 is ready for installation and includes the filter media.

  • for fresh and sea water depending on the tank load of 30 liters (8 USgal.) to 100 liters (26 USgal.) (filter for nano aquariums) or up to 1,000 liters (264 USgal.) (surface filter).
  • Variable pumping power from 250 l/h (66 USgal./h) up to 850 l/h (225 USgal./h).
  • Power consumption: 2.5 - 4.5 W, 230V/50Hz (115V/60Hz)
  • Max. immersion depth: approx. 160 mm (6.3 in.)
  • Dimensions (L x W x H): 115 x 60 x 175 mm (4.5 x 2.4 x 6.9 in.)
  • Silence Magnet Holder up to a glass thickness of 10 mm (3/8 in.).



The rotating surface suction device, allows the filter to be placed in every corner of the aquarium. Two parts can be attached.

Attachment with a patented Magnet Holder for a glass thickness of up to 10 mm (3/8 in.).

Pre-chamber for nano heater, probes or organic material.

Floor-level suction (15% of the pump performance) for a collection of the particles in the water column.

Adjustable Comline® energy-saving pump with a variable performance between 250 and 850 l/h (66 to 225 US gal./h).
Power consumption 2.5 - 4.5 W.

Main Chamber (85% pump performance) with a filter volume of 250 cc, can be refilled with any kind of loose micro and macro-cotton, loose activated carbon or other filter media.

Filter cover above the main chamber for an easy filter change.

The rear cover can remain closed for probes or heaters.
