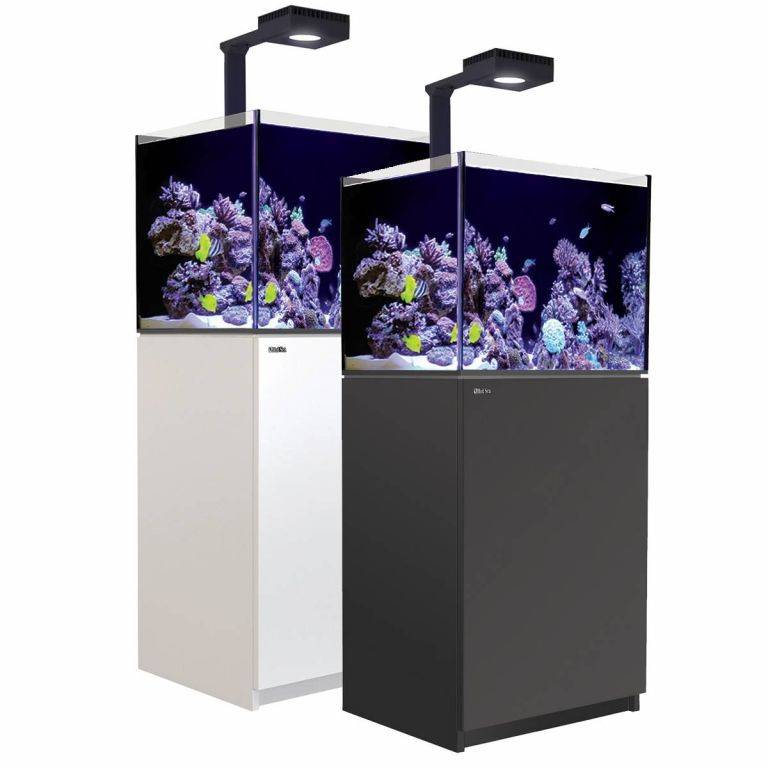

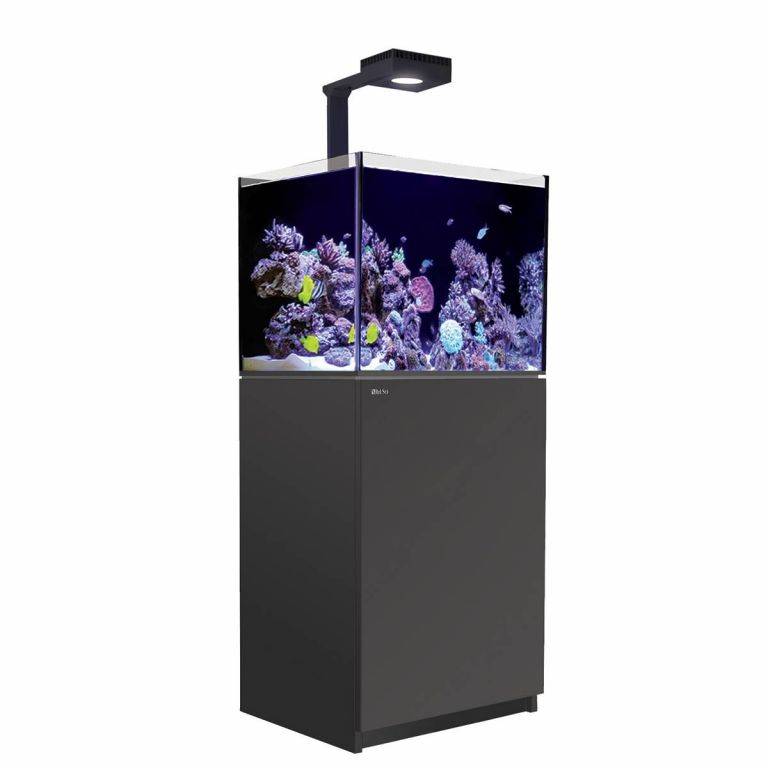

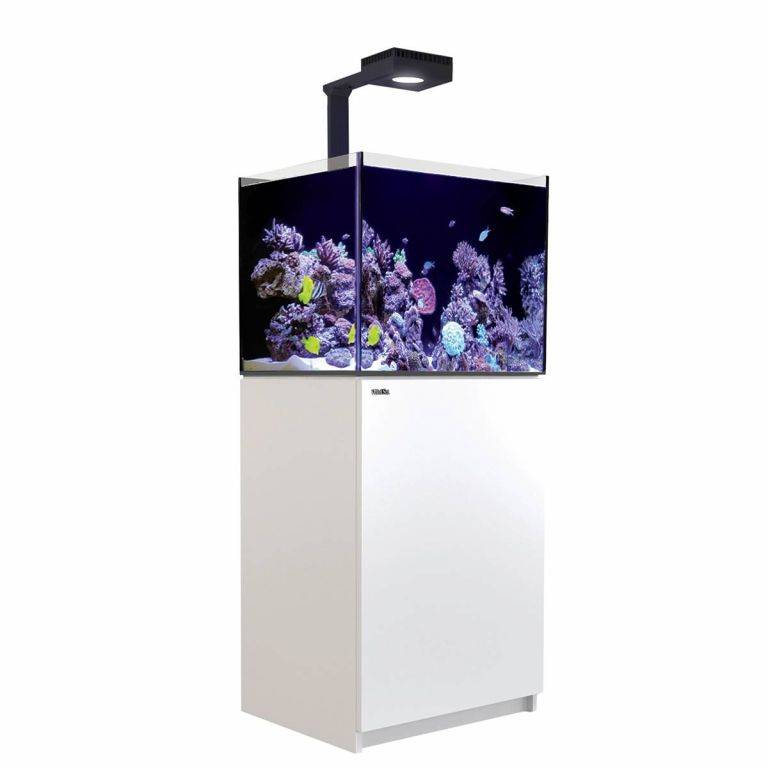

Red Sea REEFER 170 Deluxe (incl. 1x ReefLED90)
Deluxe Reefer 170 includes 1x ReefLED 90
The REEFER™ Deluxe incorporates the all-new ReefLED™ lighting units with Red Sea’s custom mounting system into the REEFER reef ready systems in a convenient single package.
At the heart of the ReefLED is a compact Led array that provides a reef-safe range of REEF-SPEC light through a single REEF-SPEC Blue (23,000 Kelvin) channel that consists of an optimum combination of ultraviolet, violet and blue LEDs and an 8,000 Kelvin white channel.
In addition, it has a separate dedicated 3W Moonlight channel to provide the low levels of light for reef-safe nighttime viewing.
The ReefLED includes a single optical-glass, hollow lens that creates a homogenous light, giving a dramatic coral coloration and a gentle shimmer throughout the aquarium.
ReefLED is controlled by Red Sea’s ReefBeat® App which provides a wide range of easy to use functions such as random clouds, acclimation for new installations and a lunar cycle for the moonlights.
Features of the Red Sea REEFER™ include:
- Rimless, ultra-clear, beveled edge glass aquarium
- Elegant marine-spec cabinet
- Professional refugium ready sump with adjustable height skimmer chamber.
- Micron filter bags and filter cups.
- Silent, regulated down-flow system with emergency overflow
- Integrated automatic top-up system with reservoir

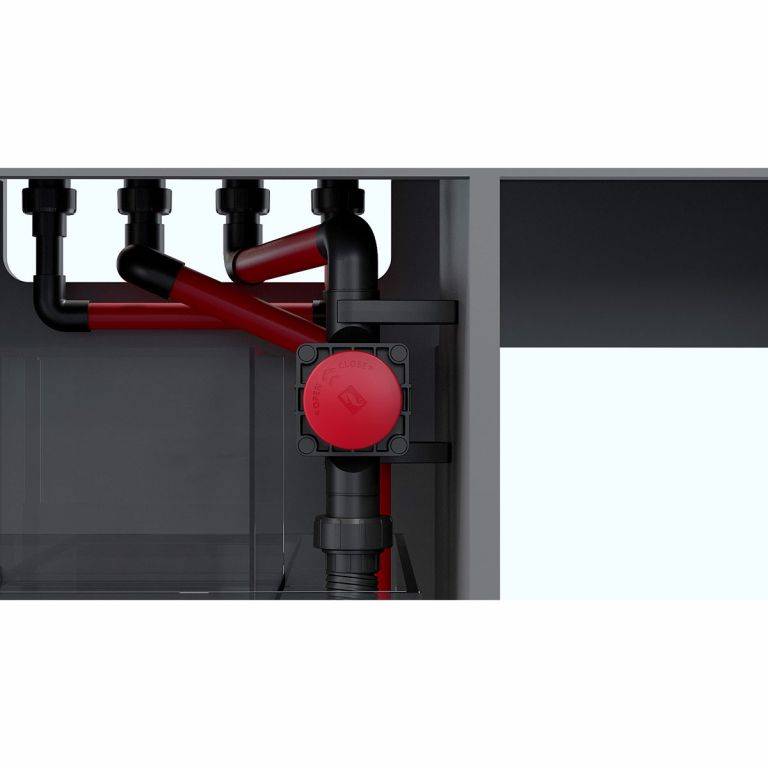

- Assembly-ready piping – no gluing required
REEFER™ aquariums are constructed from thick, beveled-edge, ultra-clear glass to support their elegant and modern rimless design.
The aquarium sits on a recessed base that “floats” it above the cabinet, which seamlessly follows the contour of the glass.
The marine-spec laminated cabinet that houses the sump, (and in the larger models also includes a dedicated, vented space for chillers) is smartly finished with weatherproof, epoxy-painted doors.
REEFER™ Water Management System

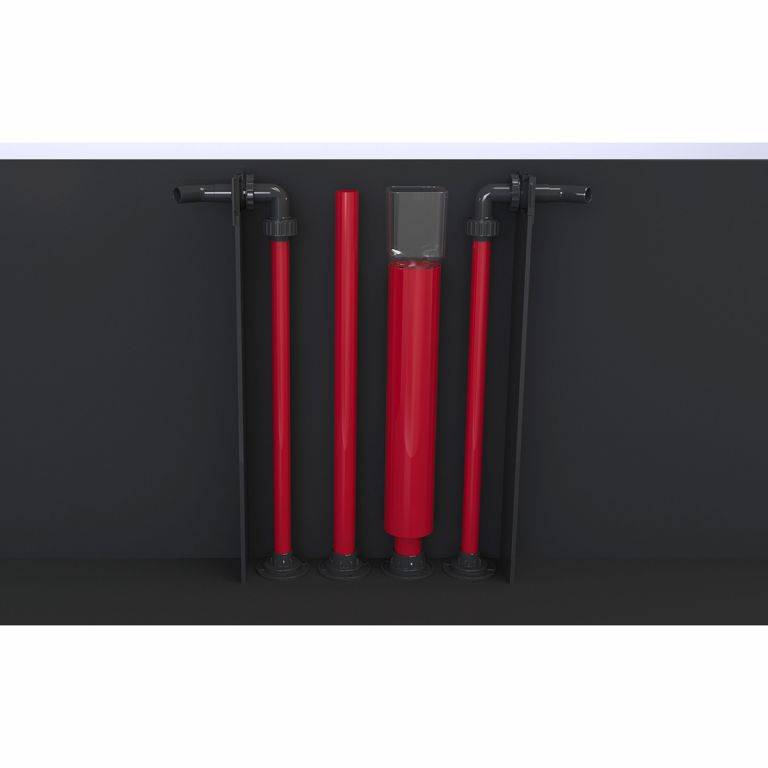

Removable surface-skimming combs surround the top of the centrally located overflow box that houses the downpipe, sump return pipe and the discreet multi-directional “eyeball” return outlet nozzle.
In the event of a blockage in the regulated downpipe, an additional emergency overflow pipe provides an unrestricted free flow of aquarium water directly to the sump.
On entering the sump the water passes through micron filters and/or filter cups with your choice of media before flowing into the optional refugium and onto the skimmer chamber with an adjustable height outlet, making it suitable for all skimmers and other reactors.

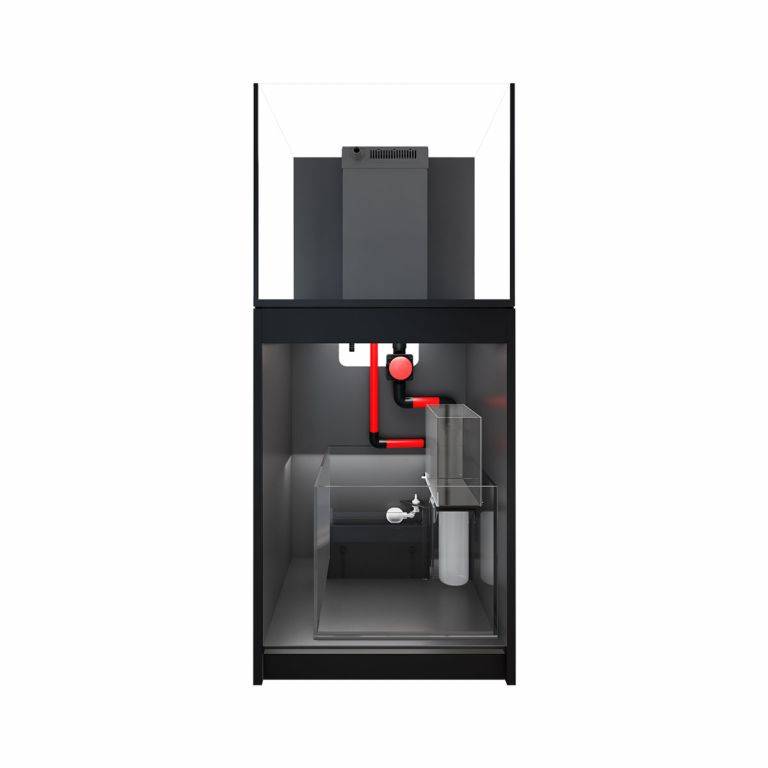

New and improved Refugium-Ready Sumps
- An adjustable height skimmer chamber, enabling you to set the water level for optimal skimmer performance.
- A “Refugium Ready” sump with two pre-set positions allows you to decide how much of the sump you want for your skimmer and other reactors and how much as a dedicated refugium chamber.
- Micron filter bags and filter cups
- Larger RO liter reservoirs that can be slid aside when necessary for pump maintenance.
- Down-flow valve conveniently located at the front of the cabinet.
REEFER™ Series Technical Data
|REEFER™ Models small to medium|
|Main Features||Ultra clear front and side glass|
|Ultra clear front glass thickness (mm)||8 (5/16”)||10 (3/8”)||12 (1/2”)||12 (1/2”)|
|Built in surface skimmer|
|Integrated automatic top up system|
|System Volumes||Display tank water volume (L)||77 (21 gal)||130 (34 gal)||204 (54 gal)||275 (73 gal)|
|In cabinet sump water volume (L)||28 (7 gal)||35 (9 gal)||40 (11 gal)||70 (18 gal)|
|Total system water volume (L)||105 (28 gal)||165 (43 gal)||244 (65 gal)||345 (91 gal)|
|RO reservoir volume (L)||4.7 (1.3 gal)||5.4 (1.5 gal)||10.9 (2.8 gal)||18 (4.7 gal)|
|System Dimensions||Display tank length (cm)||45 (18″)||60 (24″)||90 (36″)||120 (47″)|
|Display tank height (cm)||45 (18″)||50 (20″)||53 (21″)||53 (21″)|
|Display tank width (cm)||45 (18″)||50 (20″)||50 (20″)||50 (20″)|
|Total system height with cabinet (cm)||132 (52″)||137 (54″)||140 (55″)||140 (55″)|
|Sump Dimensions||Water height (cm)||20 (8”)||20 (8”)||17-23 (6.7-9”)||17-23(6.7-9”)|
|Skimmer chamber (cm)||24 x 21 (11.8″x9.8″)||30 x 25 (11.8”x9.8”)||42 x 25 (26.5”x9.8”)||42 x 26 (16.5”x10.2”)|
|Pump chamber (cm)||24 x 21 (11.8″x4.7″)||30 x 12 (11.8”x4.7”)||26 x 17 (10.2”x6.7”)||26 x 24 (10.2”x9.4”)|
|Return Pump||3/4” threaded hose barb – Pipe Int. Dia||16mm (5/8”)||16mm (5/8”)||16mm (5/8”)||16mm (5/8”)|
|Recommended flow (lph)
(pump not included)
|Deluxe Series Features||ReefLED™||
|New Special Features||Adjustable Height Skimmer Chamber|
|225 micron Thin-mesh Filter Bag||1||1||1||1|
|Filter Media Cup||1||1|
|Quick Release cabinet door hinges|
