Red Sea REEFER™ Systems
Rimless reef-ready systems for advanced hobbyists

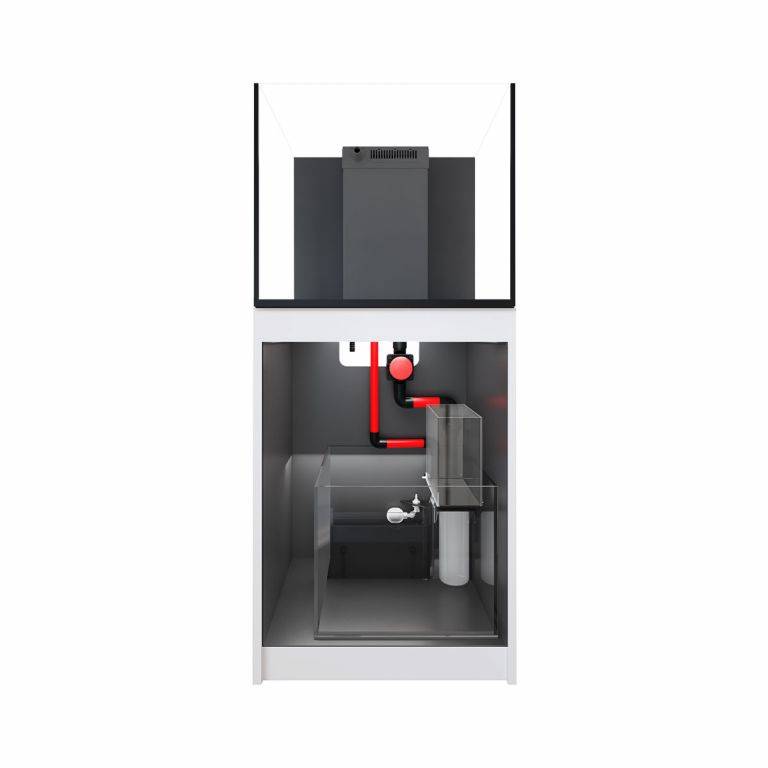

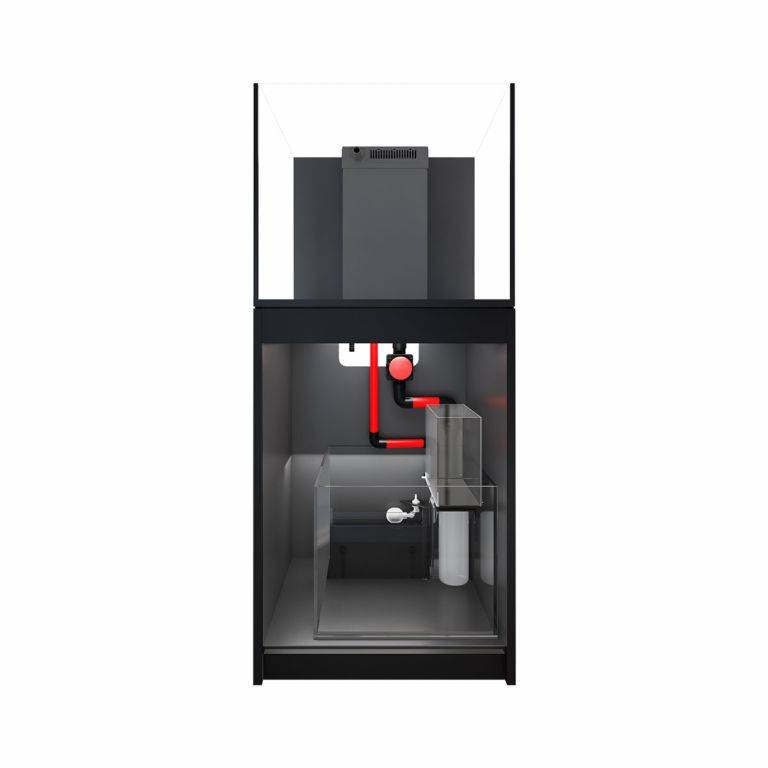

Red Sea’s REEFER™ series of Reef Systems provide advanced hobbyists with a solid foundation for building a fully featured reef or marine aquarium.
The REEFER™ series combines a contemporary, rimless, ultra-clear glass aquarium with a stylish cabinet and a comprehensive water management system including a professional refugium ready sump with integrated automatic top-up and Red Sea’s unique silent down-flow system.
The REEFER™ series is designed for ease of operation while enabling the advanced hobbyist to install an unlimited choice of lighting, filtration, circulation and controllers to create a uniquely customized system.
The new REEFER™ series have advanced sumps with the following exciting new features:
Note: not all features are available on REEFER™ 170, colour of interior cabinet and piping may vary
Features of the Red Sea REEFER™ include:
REEFER™ aquariums are constructed from thick, beveled-edge, ultra-clear glass to support their elegant and modern rimless design.
The aquarium sits on a recessed base that “floats” it above the cabinet, which seamlessly follows the contour of the glass.
The marine-spec laminated cabinet that houses the sump, (and in the larger models also includes a dedicated, vented space for chillers) is smartly finished with weatherproof, epoxy-painted doors.
REEFER™ Water Management System

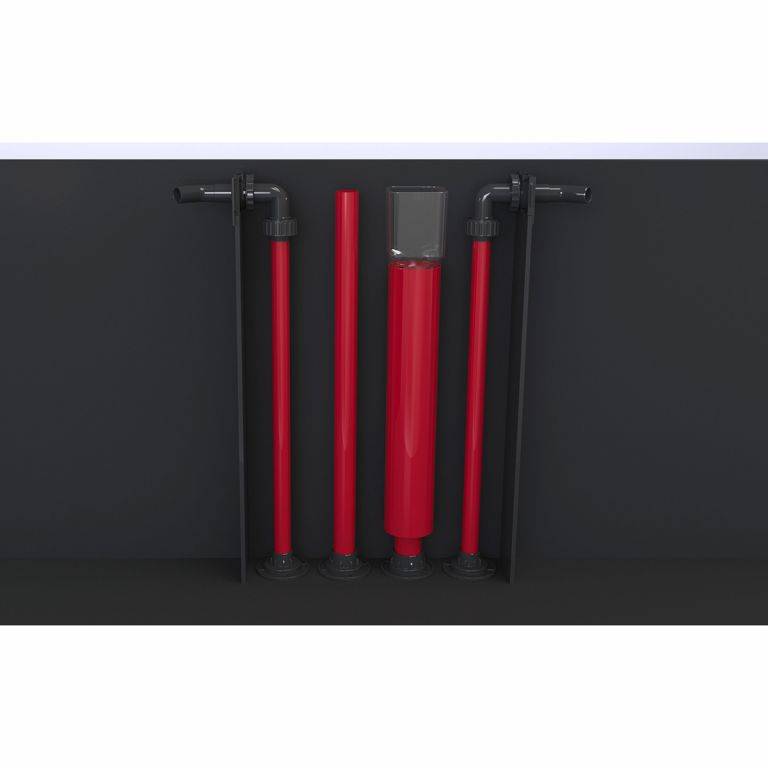

Removable surface-skimming combs surround the top of the centrally located overflow box that houses the downpipe, sump return pipe and the discreet multi-directional “eyeball” return outlet nozzle.
In the event of a blockage in the regulated downpipe, an additional emergency overflow pipe provides an unrestricted free flow of aquarium water directly to the sump.
On entering the sump the water passes through micron filters and/or filter cups with your choice of media before flowing into the optional refugium and onto the skimmer chamber with an adjustable height outlet, making it suitable for all skimmers and other reactors.
In order to remove any air bubbles that may have escaped from the skimmer, the water passes through a bubble-stripping cascade on its way to the return pump chamber.
To ensure a constant water level in the pump compartment, all REEFER™ sumps include an integrated automatic freshwater top-up unit, guaranteeing a constant, stable water flow throughout the complete system.

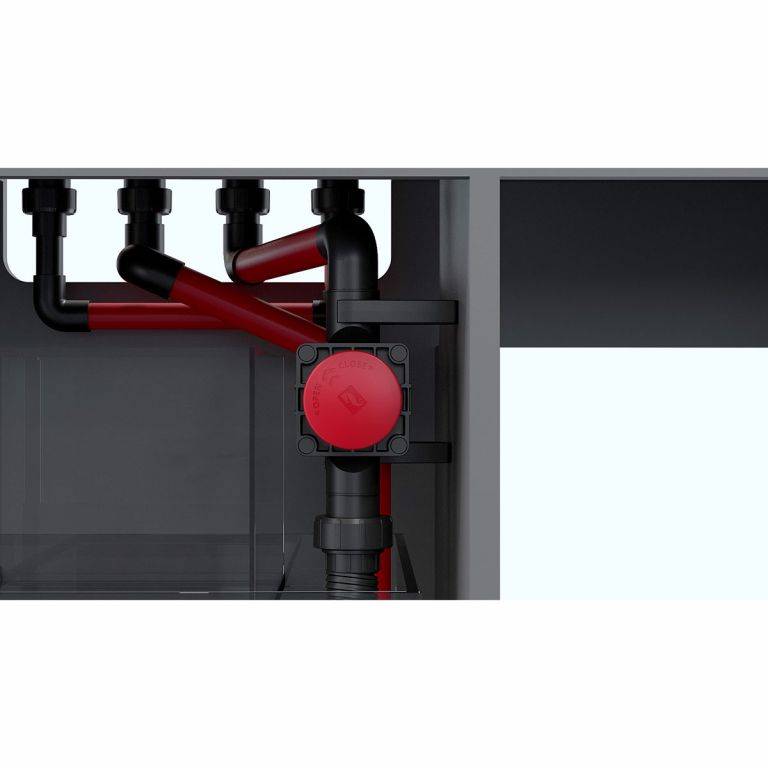

Supplied as a complete self-assembly kit, all pipe work is ready without the need for any gluing.
|REEFER™ Models small to medium|
|Main Features||Ultra clear front and side glass|
|Ultra clear front glass thickness (mm)||8 (5/16”)||10 (3/8”)||12 (1/2”)||12 (1/2”)|
|Built in surface skimmer|
|Integrated automatic top up system|
|System Volumes||Display tank water volume (L)||77 (21 gal)||130 (34 gal)||204 (54 gal)||275 (73 gal)|
|In cabinet sump water volume (L)||28 (7 gal)||35 (9 gal)||40 (11 gal)||70 (18 gal)|
|Total system water volume (L)||105 (28 gal)||165 (43 gal)||244 (65 gal)||345 (91 gal)|
|RO reservoir volume (L)||4.7 (1.3 gal)||5.4 (1.5 gal)||10.9 (2.8 gal)||18 (4.7 gal)|
|System Dimensions||Display tank length (cm)||45 (18″)||60 (24″)||90 (36″)||120 (47″)|
|Display tank height (cm)||45 (18″)||50 (20″)||53 (21″)||53 (21″)|
|Display tank width (cm)||45 (18″)||50 (20″)||50 (20″)||50 (20″)|
|Total system height with cabinet (cm)||132 (52″)||137 (54″)||140 (55″)||140 (55″)|
|Sump Dimensions||Water height (cm)||20 (8”)||20 (8”)||17-23 (6.7-9”)||17-23(6.7-9”)|
|Skimmer chamber (cm)||24 x 21 (11.8″x9.8″)||30 x 25 (11.8”x9.8”)||42 x 25 (26.5”x9.8”)||42 x 26 (16.5”x10.2”)|
|Pump chamber (cm)||24 x 21 (11.8″x4.7″)||30 x 12 (11.8”x4.7”)||26 x 17 (10.2”x6.7”)||26 x 24 (10.2”x9.4”)|
|Return Pump||3/4” threaded hose barb – Pipe Int. Dia||16mm (5/8”)||16mm (5/8”)||16mm (5/8”)||16mm (5/8”)|
|Recommended flow (lph)
(pump not included)
|Deluxe Series Features||ReefLED™||
|New Special Features||Adjustable Height Skimmer Chamber|
|225 micron Thin-mesh Filter Bag||1||1||1||1|
|Filter Media Cup||1||1|
|Quick Release cabinet door hinges|
Seachem Reef Reactor Lg
Reef Reactor™ is a high-purity source of aragonite, which supplies all important elements for optimal ionic balance and robust coral growth and coloration in reef aquaria. It has a grain size of approximately 1-3 cm. (Reef Reactor™ Md is 0.5 - 1 cm). It is intended for use in calcium reactors where it is dissolved slowly with the addition of CO2. As it dissolves, it provides calcium, magnesium, strontium, potassium, and carbonates among other important elements for reef aquaria. It is excellent at increasing and stabilizing alkalinity, which also supports a stable pH and encourages the rapid formation of coral skeletal material. With high levels of both calcium and magnesium, it offers an excellent means of balanced supplementation for rapid growth and propagation of corals and calcareous animals in reef aquaria. It possesses the highest level of soluble potassium of all competing brands while exhibiting the lowest levels of both aluminum and phosphorus.
Rinse Reef Reactor™ prior to initial placement in your calcium reactor. The rate of water flow through the reactor in conjunction with the pH of the water inside the reactor will control the rate of media dissolution. Follow the manufacturer’s instructions furnished with the calcium reactor and adjust the rates of water flow and CO2 injection to attain the desired concentrations of calcium and alkalinity in the effluent.
Use Seachem’s Reef Status™: Magnesium and Reef Status™: Calcium test kits to measure alkalinity, calcium, and magnesium concentrations.
