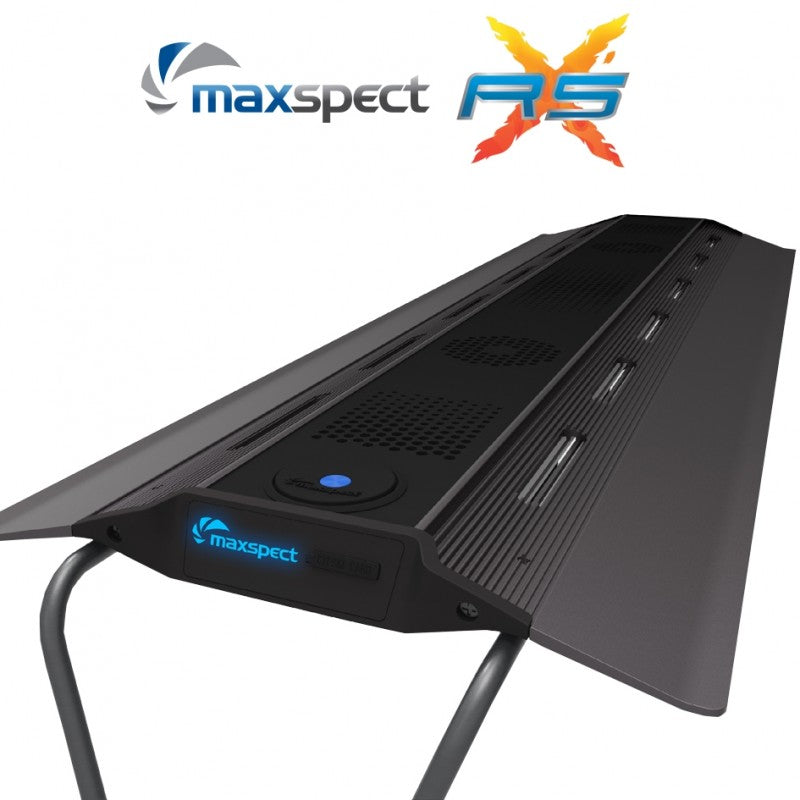

Maxspect RSX

Maxspect RSX R5

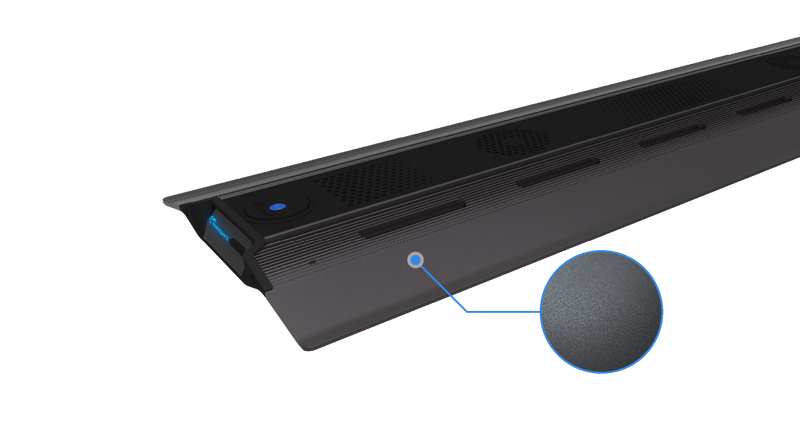

– Lightweight Architectural Grade Aluminum Alloy Frame
– Aerodynamic Passive Cooling Design
– On-Board Advanced Controller with LED Display
– Wireless Controllability with iOS and Android Devices*
– Connect and Control up to 32 RSX Fixtures
– Enhances Coral Growth & Coloration
– Utilizes the 410/420nm Spectrum
– 4 Programmable Color Channels
– Mimic Nature from Dawn to Dusk

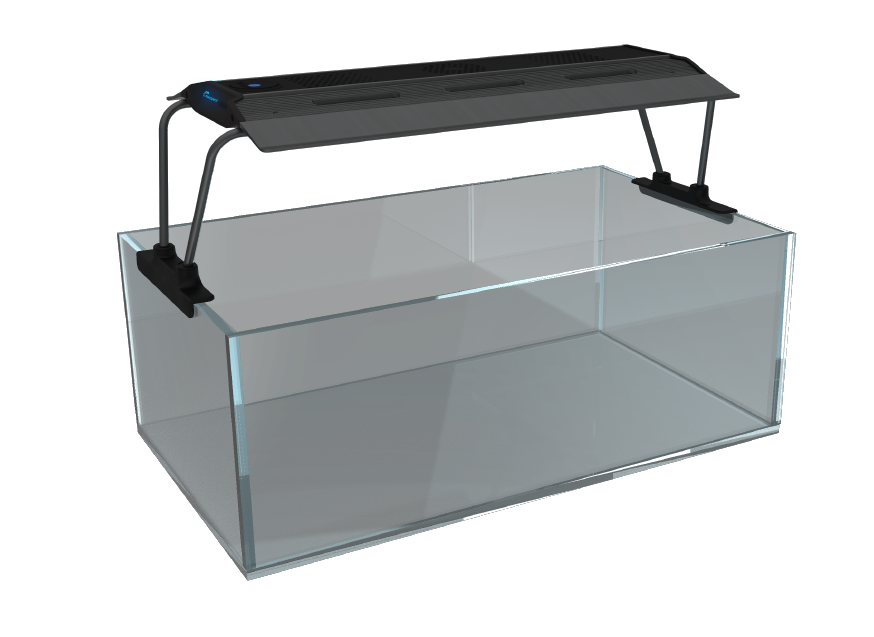

– Includes Tank-top Mounting Legs
– Utilizes Cree XLamp, XT-E & XP-E LED chips
– Neptune Systems Apex Controller IOTA Ready**

** Optional iOS and Android control requires Maxspect Connect (ICV6), sold separately. ** Requires ICV6 firmware 1.7 available in November.

Built with a aerodynamic body, the RSX LED Lighting System is designed to seamlessly merge into your living area with elegance and style. The RSX is an all-in-one LED system utilizing the latest in LED technology, including Cree XT-E and XP-E high intensity LED chips distributed in 4 different channels, offering impressive performance and versatility.

Built-in Controller
There’s no need to buy an additional controller just to be able to use your aquarium lighting, the Maxspect RSX has control built-in. The built-in controller integrated in the RSX features an OLED monitor and a control dial, from which user can easily setup all the functions for the fixture.

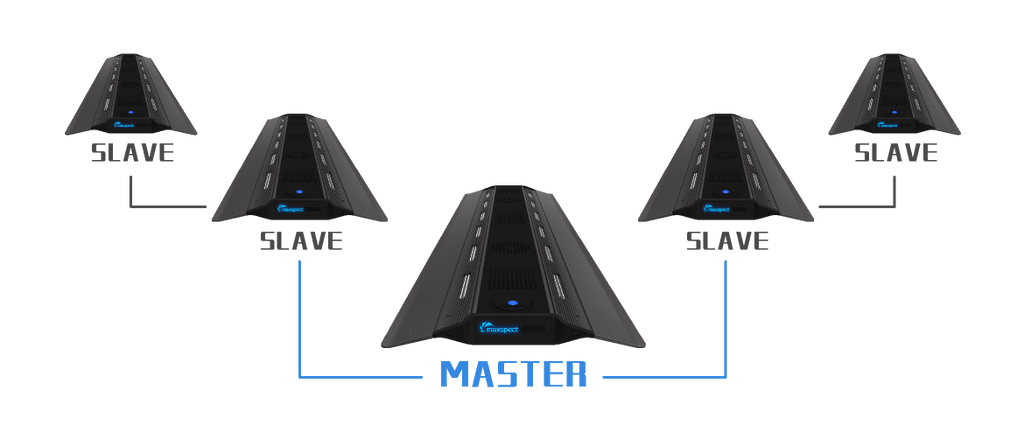

Standard or Master/Slave Mode
2 or more RSX fixtures can be connected together through the Master/Slave mode to control them simultanousely – all Slave fixtures will follow the settings programmed on the Master fixture, saving time and effort on setting up multiple fixtures.

Control with iOS or Android Devices (Optional)
The RSX can be wirelessly connected to a Maxspect Connect ICV6 controller (sold separately), which allows the RSX fixture(s) to be controlled by iOS or Android devices through the Syna-G app.

Enhanced Growth and Coloration
The RSX Lighting system is designed to provide all ranges of color spectrum required by corals and plants to enhance their growth rate, improve their coloration and at the same time giving your aquarium the most aesthetically pleasing combination of colors. The RSX will meet the requirements of even the most sophisticated group of marine, reef and freshwater hobbyists.

410nm/420nm Super Actinic
The R420R Lighting system also utilizes the 410/420nm Super Actinic LED chips, the spectrum that’s crucial for the success of any reef and water plant aquariums as it is required by Chlorophyll A for photosynthesis, where absorption peaks at 412nm.

Built-in Temperature Control System
The RSX Lighting system deploys an ingenious aerodynamic design which draws cool air from underneath the fixture, through its body which also serves as a large heat sink, to dissipate heat passively. Equipped with fans to regulate fixture temperatures in enclosed environments. The fan(s) will be automatically engage when the temperature is above 55°C/131°F, and disengage when it is below 45°C/113° F.

RSX Specification

Channel Led Specs R5-100 R5-150 R5-200 R5-300
A Cree XT-E 450-455nm Royal Blue 4 6 8 12
Cree XT-E 6500k Cool White 4 6 8 12
B Cree XB-D 450-455nm Royal Blue 8 12 16 24
EpiLED 470-475nm Cool Blue 8 12 16 24
C EpiLED 390-395nm Violet 2 3 4 6
EpiLED 400-405nm Violet 2 3 4 6
EpiLED 410-415nm Violet 2 3 4 6
EpiLED 440-445nm Deep Blue 2 3 4 6
D EpiLED 500-505nm Cyan 2 3 4 6
EpiLED 660-665nm Deep Red 2 3 4 6
Cree XB-D 3000K Warm White 4 6 8 12


Model R5-100 R5-150 R5-200 R5-300
Cluster per Model 2 3 4 6
Dimension 468×260×170mm
Net Weight 2.1kg 3.1kg 4kg 5.5kg
Suit for Tank 45-70cm
Rate Power 115W 160W 195W 305W
PSU Meanwell Irs-150-24
Output:24V/6.5A Weight:939g
Meanwell Irs-200-36
Output:36V/5.9A Weight:1.23kg
Meanwell Irs-200-24
Output:24V/8.8A Weight:1.23kg
Meanwell Irs-350-24
Output:24V/14.6A Weight:1.23kg
